2024+ Jeep Wrangler JL & Jeep Gladiator A-Pillar Grab Bar Mount with 20mm Ball

Introducing an additional mounting point for 2024+ Jeep Wrangler JL, 2024+ Jeep Wrangler 4xe and 2024+ Jeep Gladiator owners.

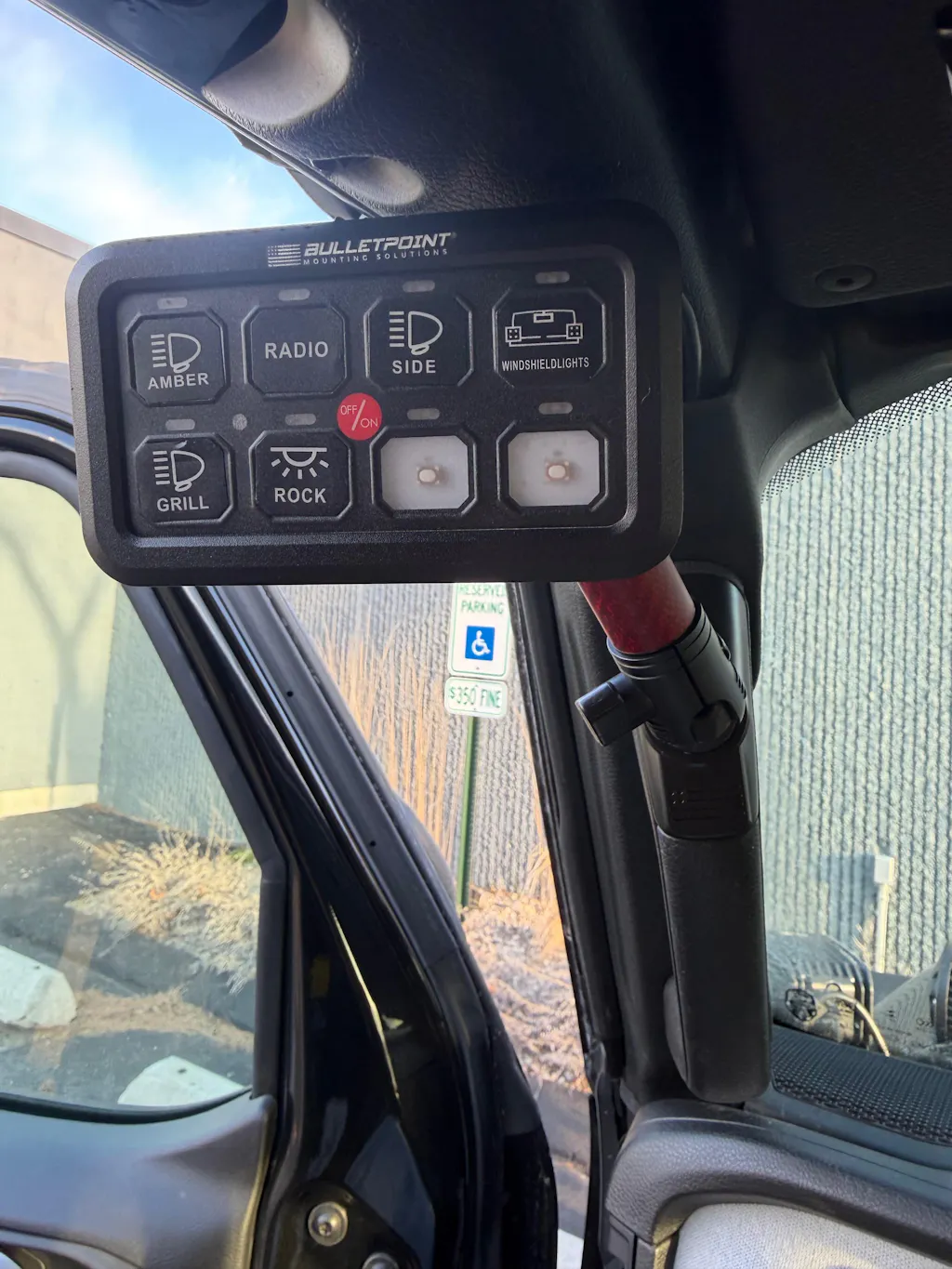

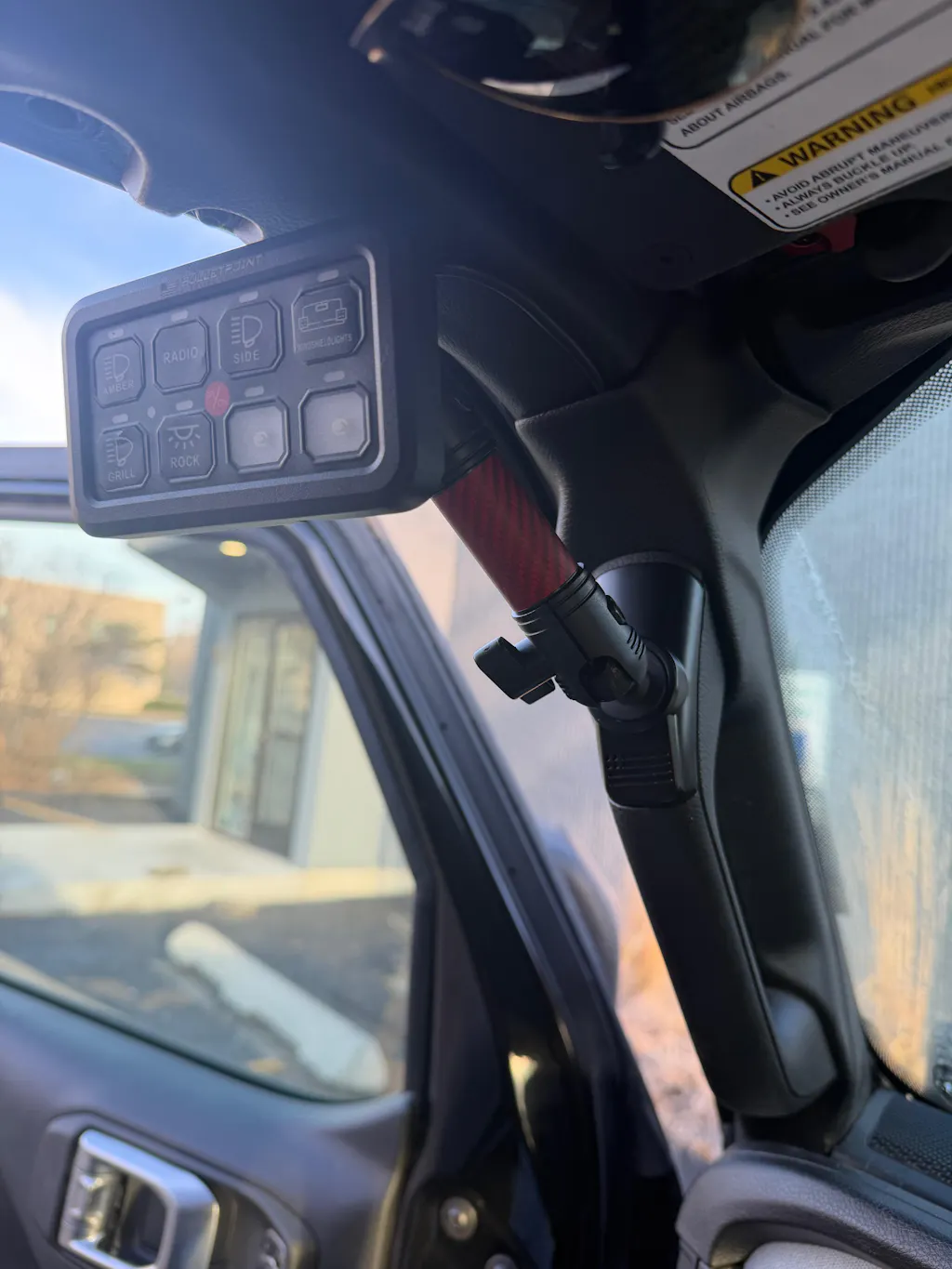

Whether you want to mount a CB radio, handheld radio, phone or switch panel, our aluminum A-Pillar Grab Bar Mount with 20mm Ball is a great solution!

QUICK & EASY INSTALLATION

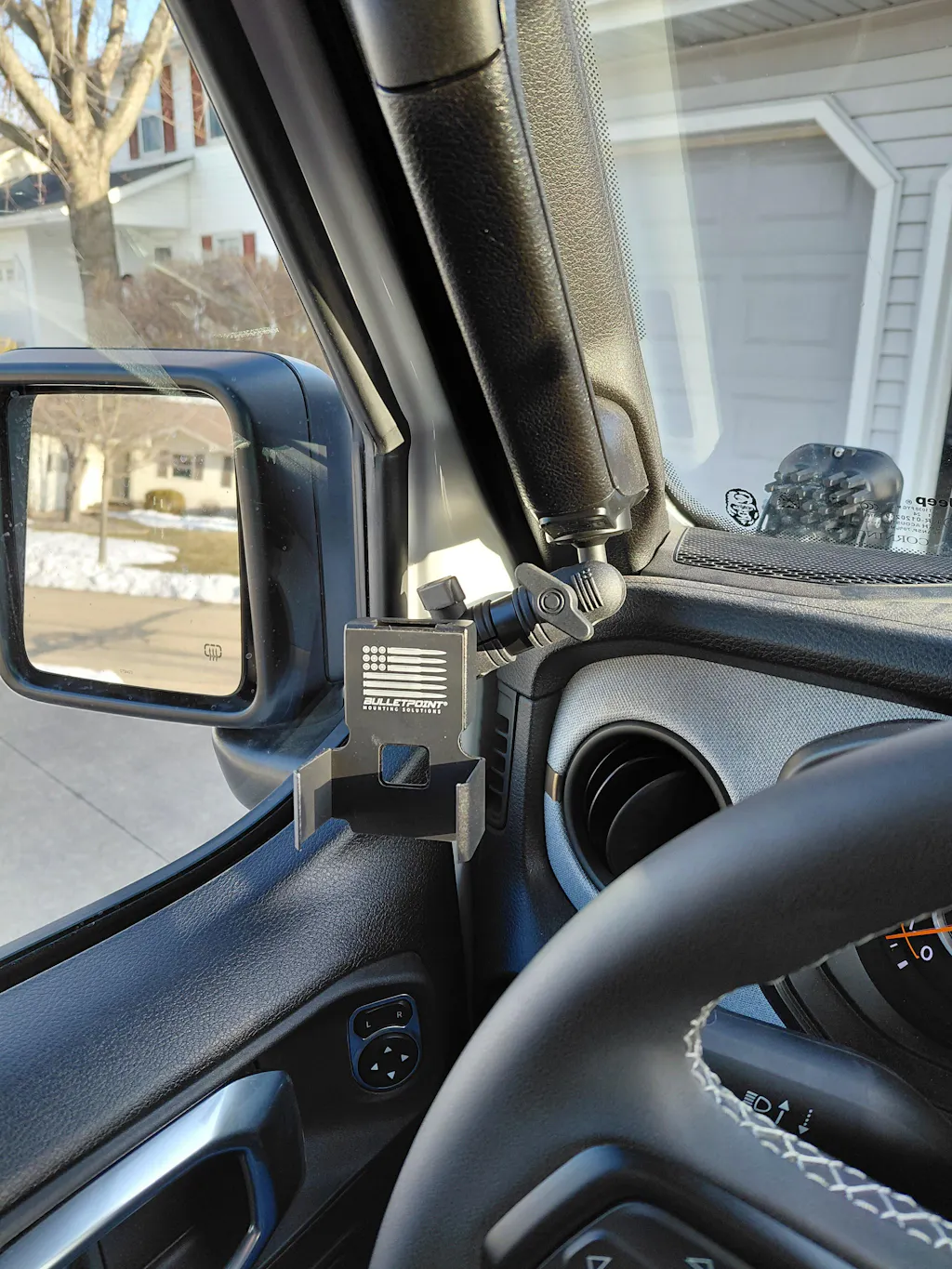

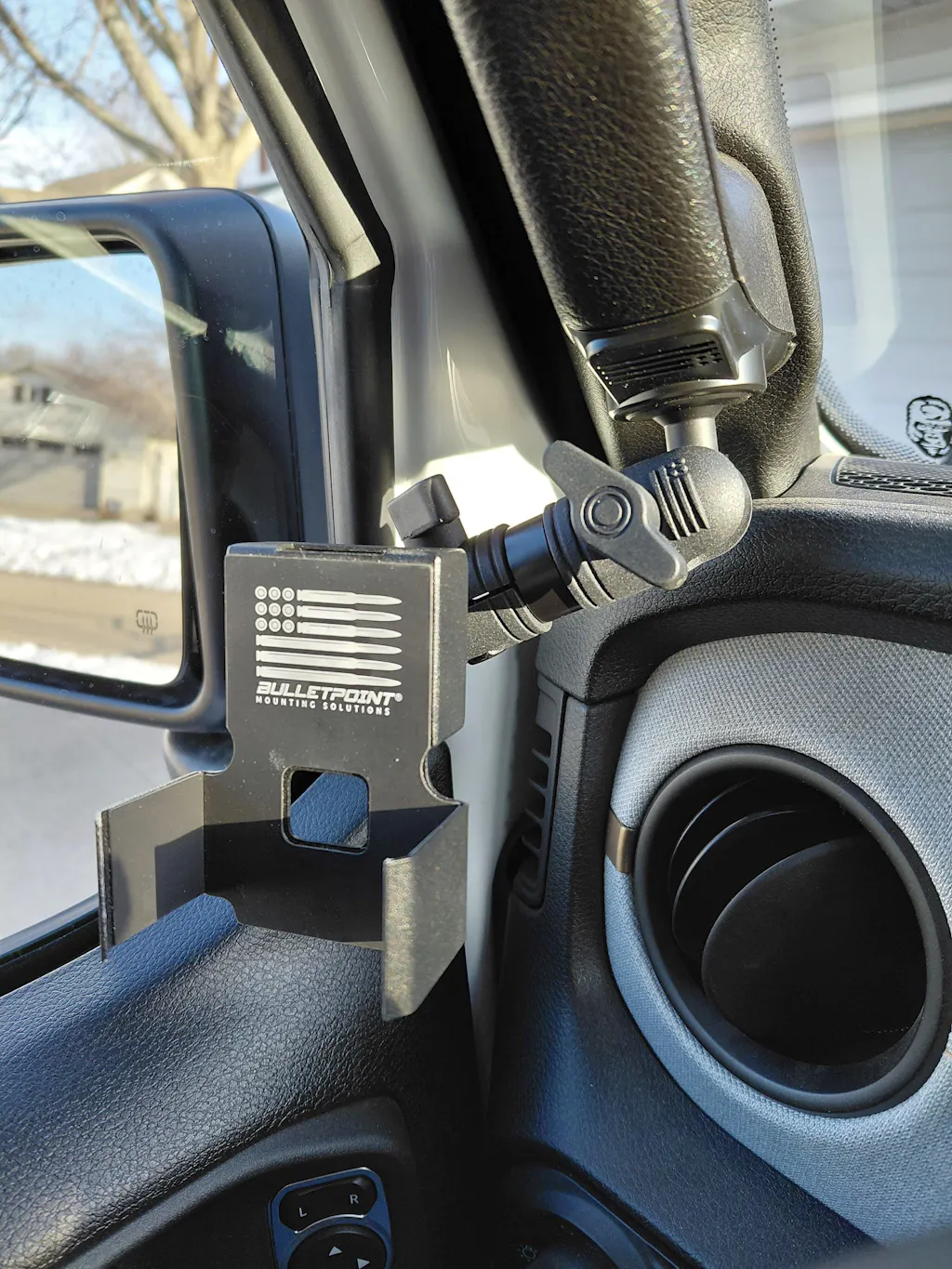

This ball mount installs on either of the two front A-Pillar grab bars in your Jeep Wrangler or Gladiator. Plus, you can decide to mount it on the top portion or bottom portion of each grab bar. It does not fit rear grab bars.

1. Remove the small top or bottom plastic panel on driver side or passenger side grab handle with a trim removal tool — it will not be reused.
2. Using a 10mm socket, remove the bolt – it will not be reused.
3. Separate the 20mm ball from the A-Pillar mount with the included Allen key to expose the hole for installation.
4. Set the Bulletpoint A-Pillar Mount in place and secure it by threading the longer replacement bolt with the included Allen key.
5. Reattach the 20mm ball mount.
6. Attach your desired device holder to the 20mm ball mount.

Note: Our pre-built bundles include our micro arm (our smallest arm). We do not recommend mounting anything longer than our 1cm mounting arm.

If you are looking for an even lower-profile installation, check out our Nubby Edition device holders. Please note that there is very minimal clearance between the grab bar and the device holder. We only recommend using Switch Panel Nubby Edition device holders on the bottom portion of the grab bar.

**PATENT PENDING**

FITMENT

• 2024+ Jeep Wrangler JL
• 2024+ Jeep Wrangler 4xe
• 2024+ Jeep Gladiator

Does NOT fit 2018-2023 Jeep Wrangler JL or 2020-2023 Jeep Gladiator. You can find that version here: 2018-2023 Jeep Wrangler JL & 2020-2023 Jeep Gladiator A-Pillar Grab Bar Mount

CREATE YOUR ULTIMATE JEEP COMMAND CENTER

For the ultimate Jeep Command Center, combine this A-Pillar Grab Bar Ball Mount with our Picatinny-style Rail Mount, Dual Ball Mount, Single Ball Mount or Passenger Grab Bar Ball Mount.

Safety Warning & Installation Note: For off-road use only.
