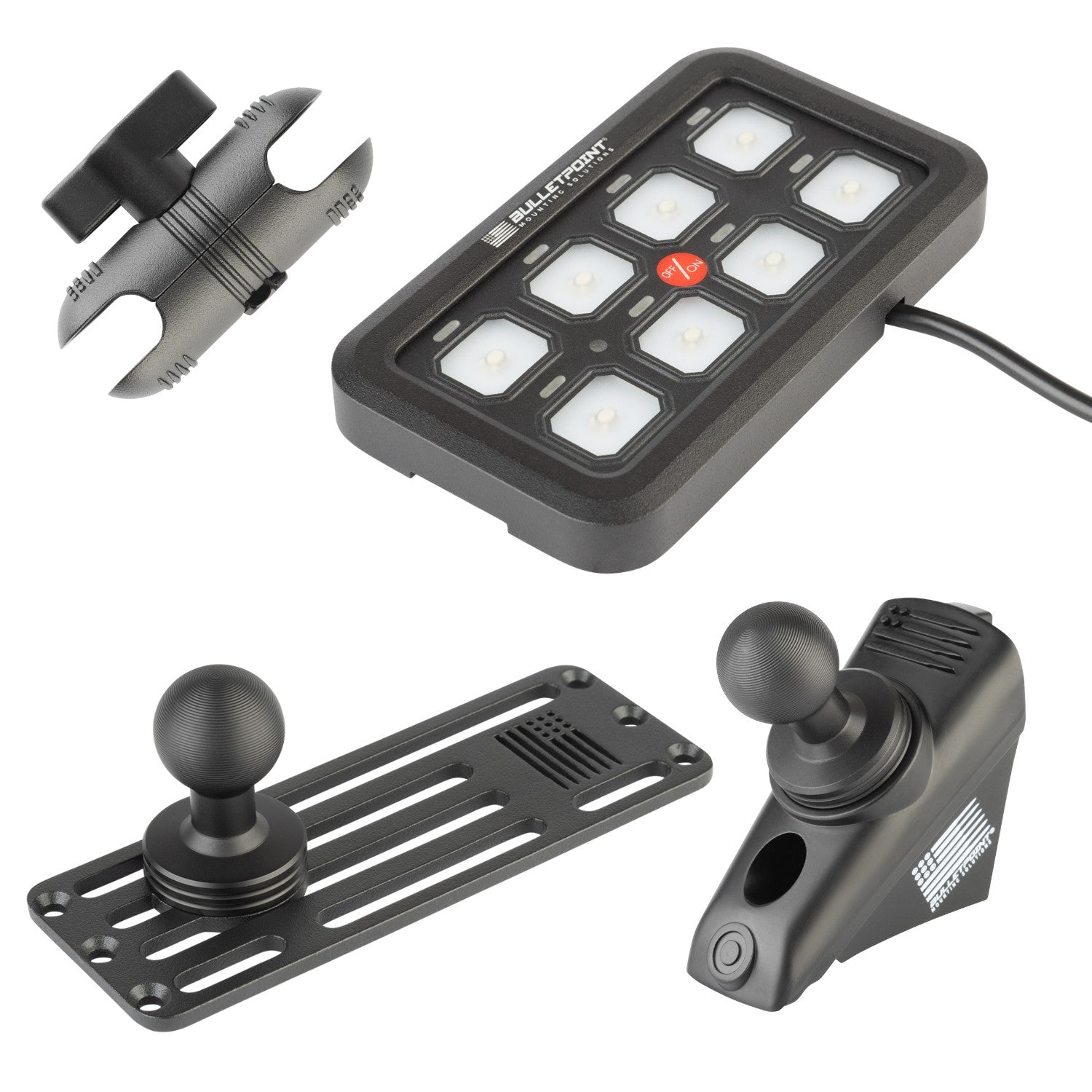

2018-2023 Jeep Wrangler JL + 2020-2023 Jeep Gladiator A-Pillar Grab Bar Mount with 8-Circuit Switch Panel Bundle

Introducing a complete switch panel solution for 2018-2023 Jeep Wrangler JL and 2020-2023 Jeep Gladiator owners.

This discounted bundle includes everything you need to unlock total control over 8 electronic devices in your Jeep.

QUICK & EASY MOUNT INSTALLATION

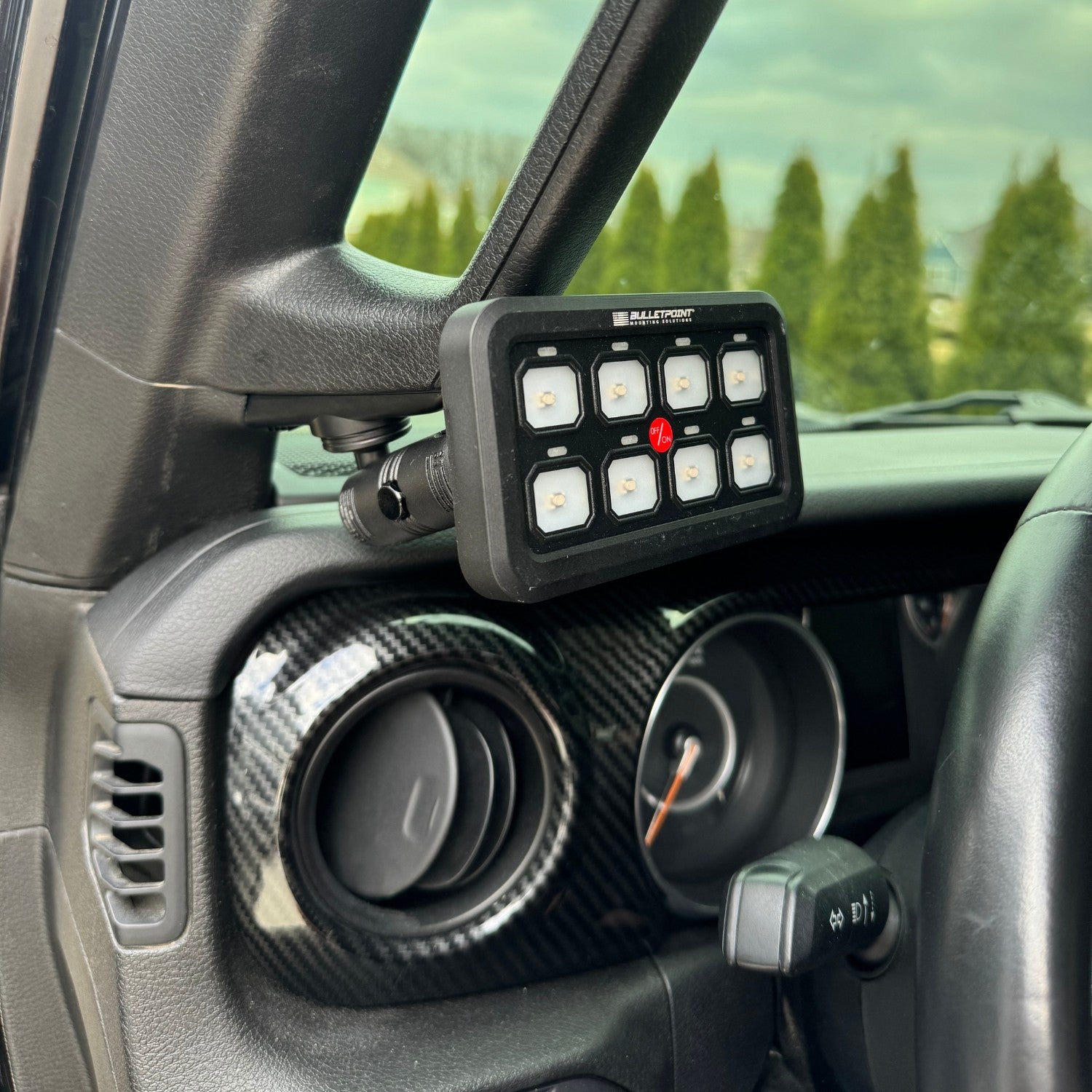

The A-Pillar mount installs on either of the two front A-Pillar grab bars in your Jeep Wrangler or Gladiator. Plus, you can decide to mount it on the top portion or bottom portion of each grab bar. It does not fit rear grab bars.

1. Remove the small top or bottom plastic panel on driver side or passenger side grab handle with a trim removal tool — it will not be reused.
2. Using a 10mm socket, remove the bolt – it will not be reused.
3. Set the Bulletpoint A-Pillar Ball Mount in place and secure it by threading the bolt with the included Allen key.

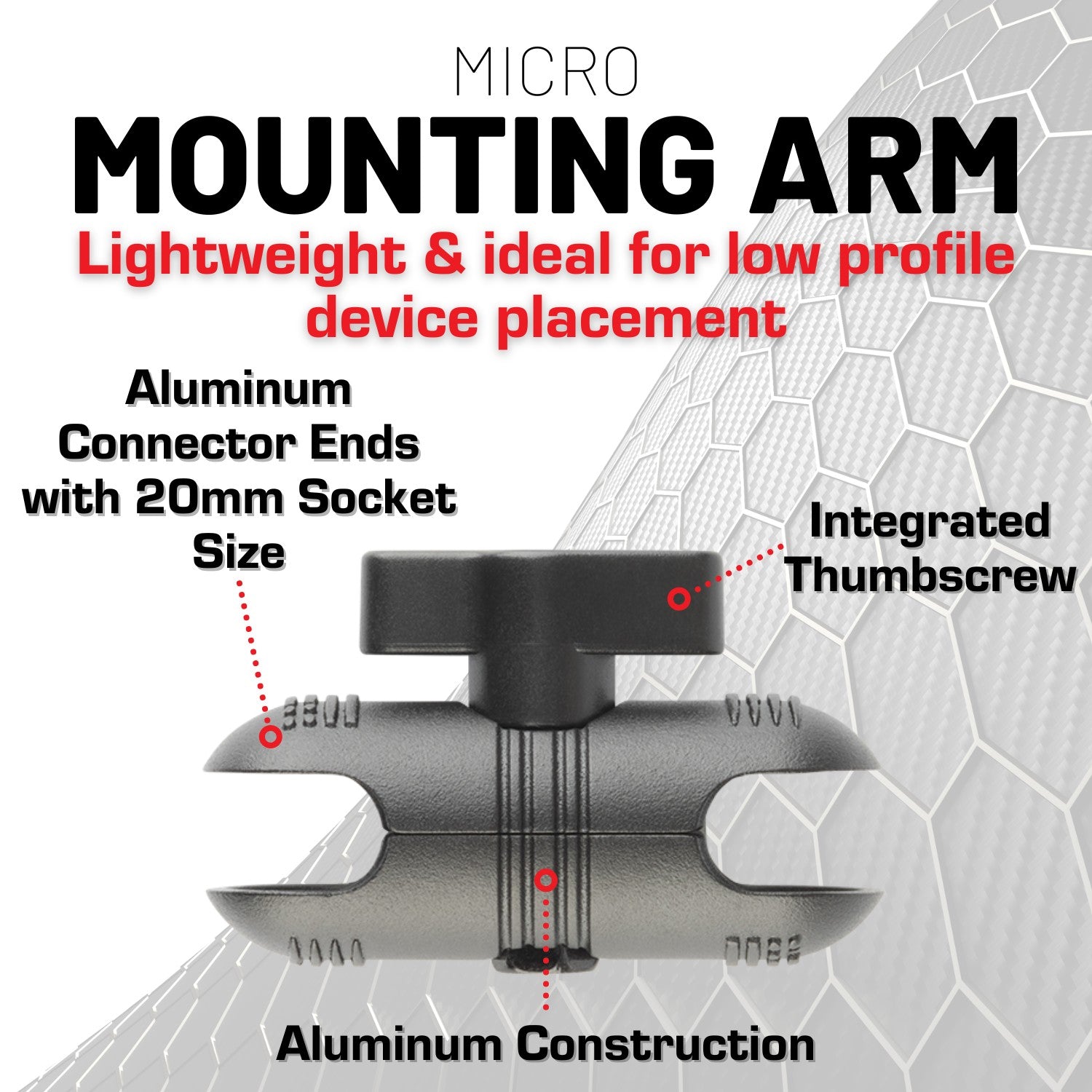

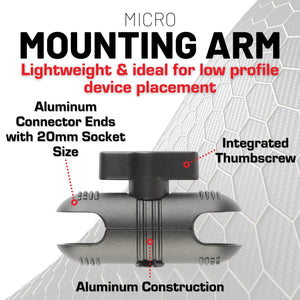

4. Attach the included Micro Arm to the 20mm ball mount.
5. Secure the 8-Circuit Switch Panel to the Switch Panel Mount using the included hardware.
6. Attach the assembled 8-Gang Switch Panel Mount & Switch Panel to the Micro Mounting Arm.

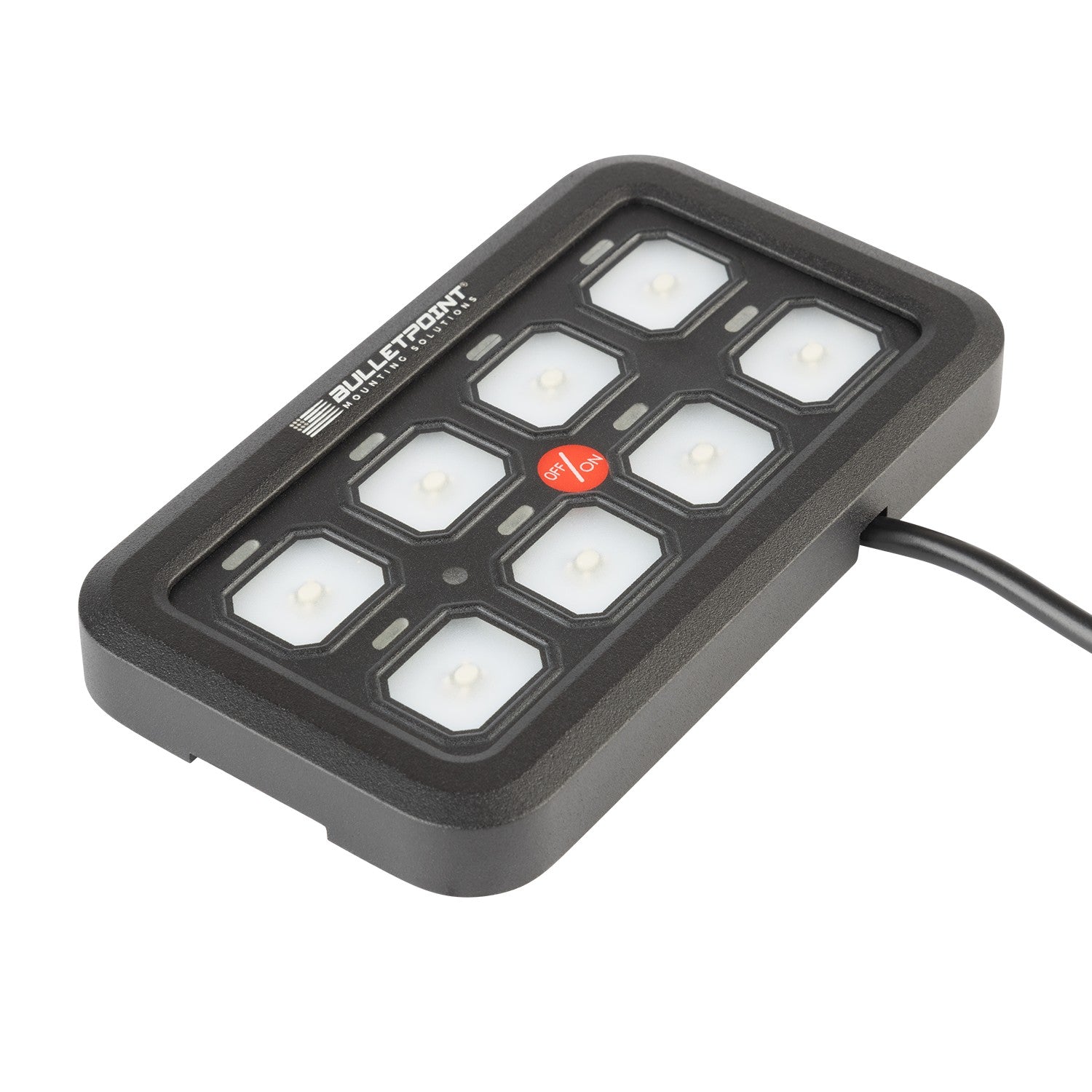

SWITCH PANEL FEATURES

With the tap of a finger, you can control up to 8 different accessories using the 8 circuit switch panel. The auto-dimming backlit screen makes it easy to see and operate at any hour, day or night.

The buttons are pre-programmed to be continuous (i.e. turning on the accessory keeps it on until you push the button again to turn it off). However, it is possible to program any of the buttons to be momentary meaning that you need to push and hold the button to enable an accessory and releasing the button turns it off.

The switch panel itself is IP65 water resistant so it can handle any harsh conditions you may encounter.

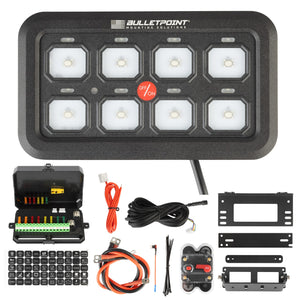

CONTROL BOX FEATURES

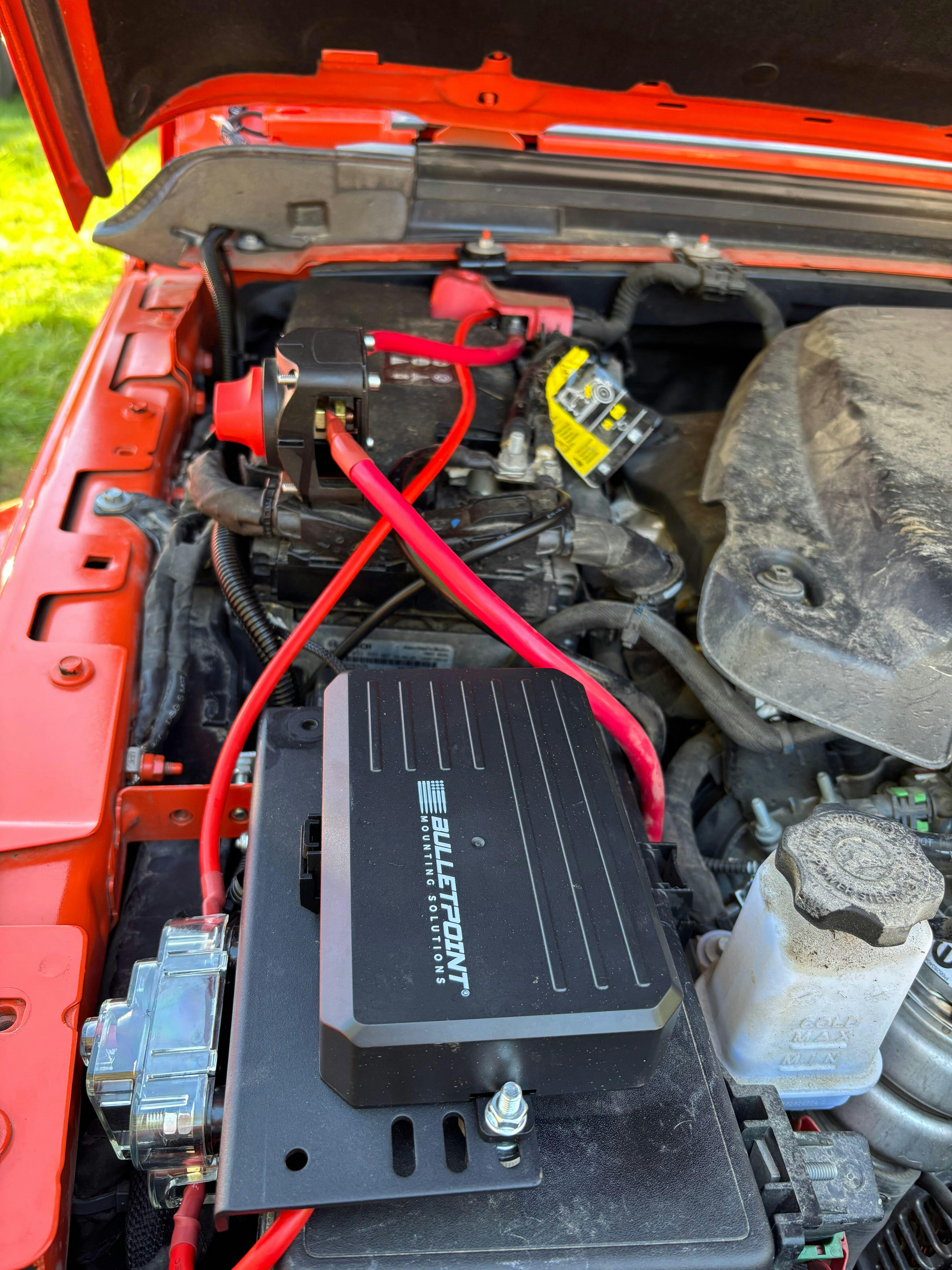

The compact design of our control box gives you the flexibility to install it almost anywhere in your engine bay. The solid-state relays found in the control box are also IP65 water resistant.

We include a built-in resettable fuse and the entire system features reverse polarity protection, over-voltage protection, and over-current protection. The fuse adapter makes it easy to connect the control box to your vehicle's fuse box without having to cut or splice into existing wiring.

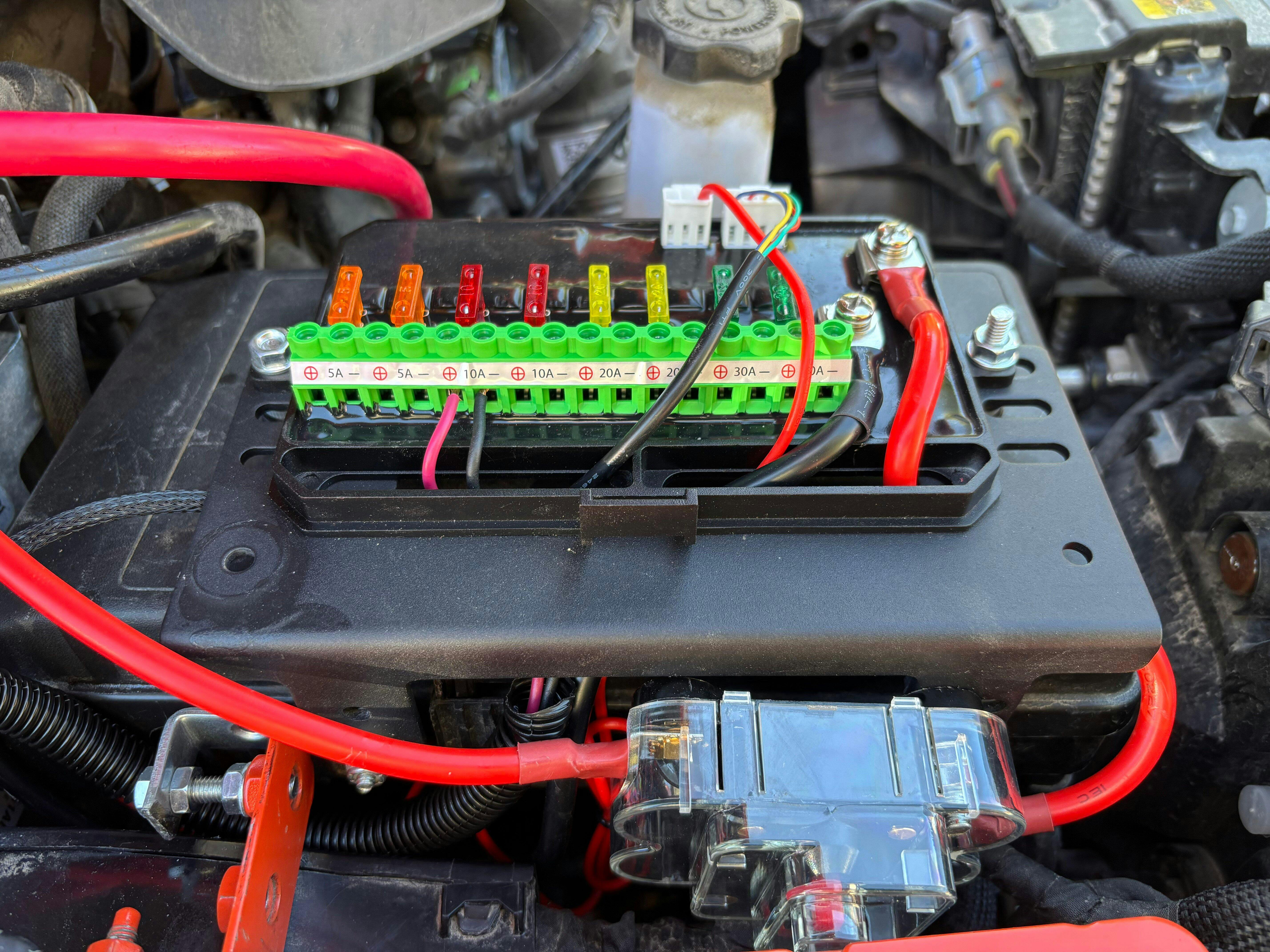

Each of the 8 circuits is fuse-protected and in the event that current draw exceeds the capacity of a specific circuit, a red status light will illuminate to indicate the error. Our control box features the following circuits ranging from 5A to 30A:

• (2x) 5A Circuits
• (2x) 10A Circuits
• (2x) 20A Circuits
• (2x) 30A Circuits

ADDITIONAL INFORMATION & LINKS

Looking for more information about the included components in this bundle? Check out the following links:

• Jeep Wrangler JL & Jeep Gladiator A-Pillar Grab Bar Mount
• Bulletpoint 8-Gang Switch Panel Mount
• Bulletpoint 8 Gang Electronic Switch Panel

Technical Specifications

• Input Voltage: 12V/24V DC
• Maximum Power: 600W at 12V/1200W at 24V
• Maximum Current: 60A
• Operating Temperature: -40°C-150°C (-40°F-300°F)
• Maximum Instantaneous Current: 100A
